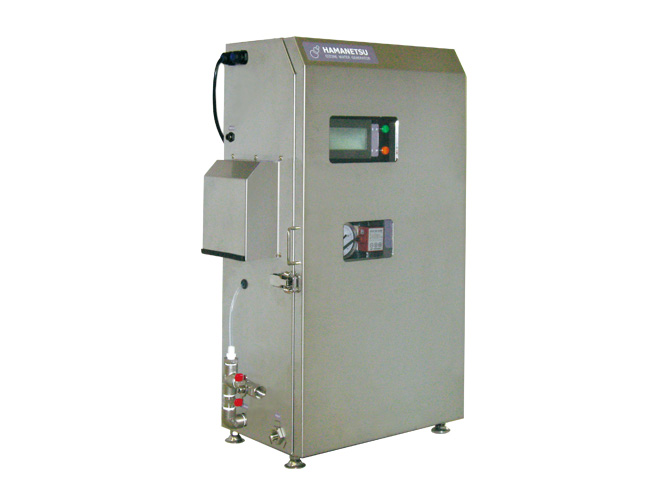

Ozonated Water Generator: HOW

Full scale device useful on site
High concentration, high flow rate ozonated water generator

Produces high concentration, high flow rate ozonated water with our patented complete circulation discharge system. It is suitable for storing ozonated water and using it for a long time.


Disinfection cleaning and keeping fresh fruits and vegetables; disinfection, cleaning, and deodorizing of floors, processors, sinks, and piping in food processing factories, etc.

Features of Ozonated Water Generator: HOW

Utilize the excellent benefits of ozonated water

In general, ozonated water is a powerful oxidizer, which not only has a deodorizing effect, but also a disinfecting effect on viruses and bacteria, including the influenza virus, norovirus, and O-157.

  • Strong disinfecting effect
  • Does not make resistant bacteria
  • No impact on internal tissue
  • No need for washing or rinsing
  • Strong deodorizing effect
  • Excellent freshness retaining effect


Uses our patented complete circulation discharge system

By circulating ozone gas, it is possible to use oxygen without producing waste ozone at high concentration and high supply rate, with an ozonated water concentration of 5.0mg/L, ozonated water supply rate of 20L/min. Because of the high ozone concentration, it can remove heat-resistant spores, mold, and yeast. This technology makes it possible to utilize the excellent disinfection cleaning and deodorizing power of ozonated water in many different fields, including agriculture, food processing, and welfare.

Improved usability for ease of management

The management screen uses a touch panel that is easy to operate. Screen color changes according to the mode, so the management status is easy to understand, making it safe to use. Maintenance is easy, by refilling tap water every 300 hours.

Easy on the environment and your budget

With the complete circulation discharge system, the running cost is kept down to 10JPY per 1 ton of ozonated water. You can use ozonated water the same way that you would use tap water. In addition, it uses less raw material oxygen, making the device environmentally friendly.

Product Specifications

Model: HOW-2005 / HOW-1505
System: Complete Circulation Discharge System
External Dimensions: W540 × D250 × H756mm (786mm with adjuster at maximum)
Weight: Approx. 35kg (dry weight)
Rated Voltage: AC100V 50/60Hz
Rated Power Consumption: 450W
Water Supply: Tap water or equivalent water
Supply Water Temperature: 5~40℃
Water Supply Pressure: 0.25MPa or more, 0.6MPa or less
Raw Material Oxygen Concentration: 90% or more
Raw Material Oxygen Pressure: 0.15~0.3MPa
Oxygen Consumption: Approx. 350cc/min (Raw material oxygen must be prepared separately)
Connection Diameter: Water Inlet 1/2B Female Screw
Ozonated Water Outlet 1/2B Female Screw/td>
Oxygen Inlet: 6mm One-Touch Joint
Ozonated Water Generation Capacity: HOW-2005: 5.0mg/L (At 20L/min, water temperature 20℃)
HOW-1505: 5.0mg/L (At 15L/min, water temperature 20℃)
Ozonated Water Rate: HOW-2005: Max 20L/min
HOW-1505: Max 15L/min
Setup / Use Location: Indoors
Use Conditions: No condensation or freezing
Ambient Temperature: 0 - 40℃ (with anti-freezing heater)
Ambient Humidity: 80% RH or less (no condensation)
Accessories: Adjuster restraint, cooling water supply container, constant flow fitting
Maintenance: Refilling cooling water into the cooling water circulation tank (300 hours each) (with display and alarm)
Discharge pipe maintenance (10,000 hours each)

Options / Consumable Products

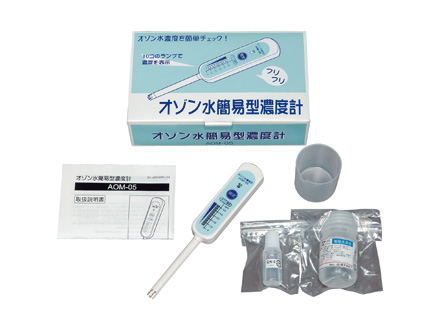

Ozonated Water Simple Concentration Meter

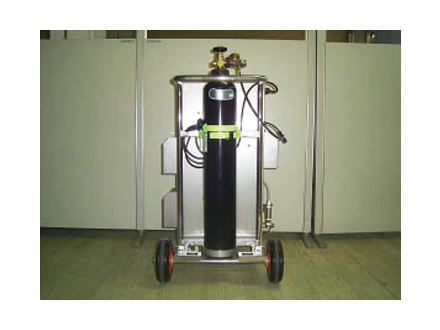

Carry Cart
Basic Kit
