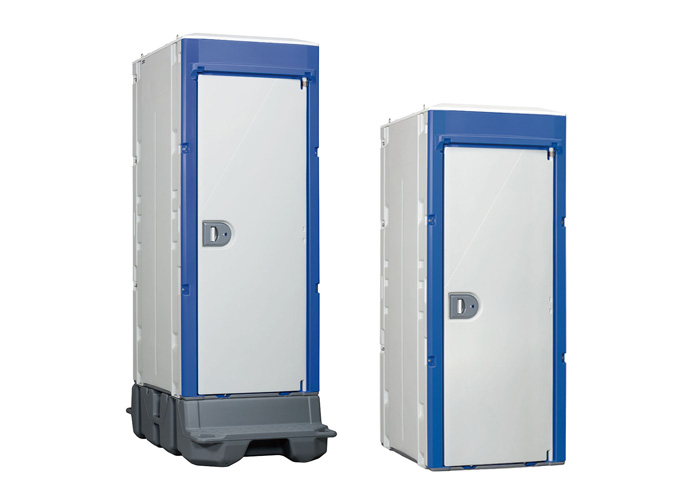

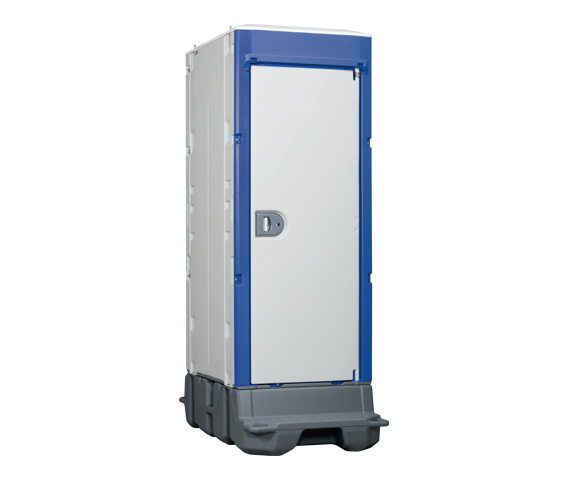

TU-iX Series

Highly functional, next generation portable toilets

The main unit has a “smart attach” mechanism that can be equipped alternatively with a western toilet, a urinal, or a sink. You can also customize this unit for your own applications with various optional settings, such as double waste tanks that can be lifted with the forks of a forklift while riding it.

Flushing System

  • Flush
  • Simple Flush
  • Pump Simple Flush
  • Non-Flush
  • Pressure Pump Flush

Applications

Construction sites, event venues, parking lots, warehouses, parks, campgrounds, riverbeds, stores, farms, houses, etc.

TU-iX Series Features

With our intricately designed structure,
we have relentlessly pursued greater comfort and convenience.

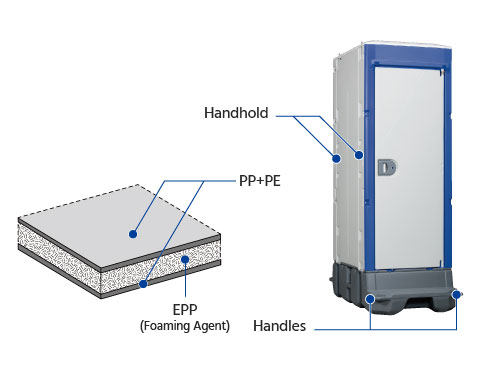

Using the new technology TBM panel (foam core twin blow molding panel), we have realized a smart appearance, clean interior, and high durability. Handles on the sides of the main unit and the waste tank make them easier to handle and move. Exchanging the hanger on doors without tools (hang right / hang left).

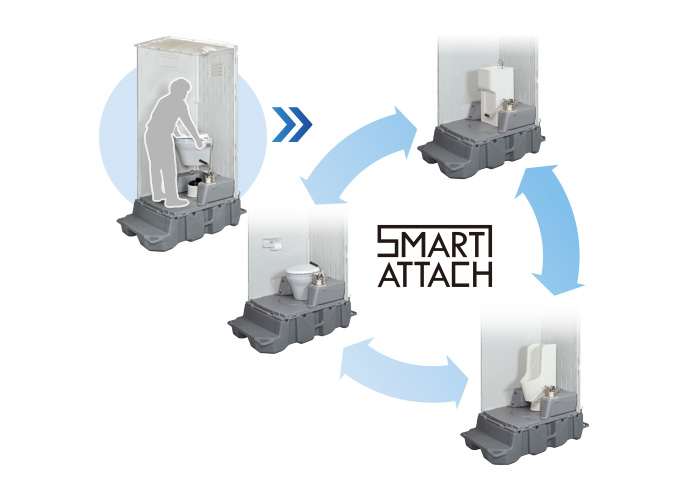

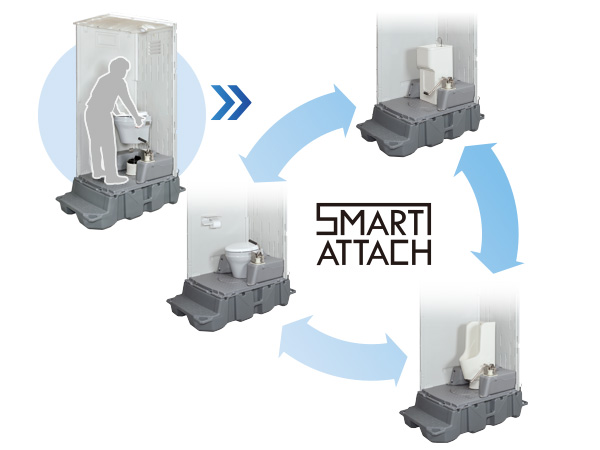

Improved convenience with smart attach mechanisms

The main unit has a “smart attach” mechanism that can be equipped alternatively with a western toilet, a urinal, or a sink. They can easily be attached or removed by one person, without any tools. We have acquired a utility model right.

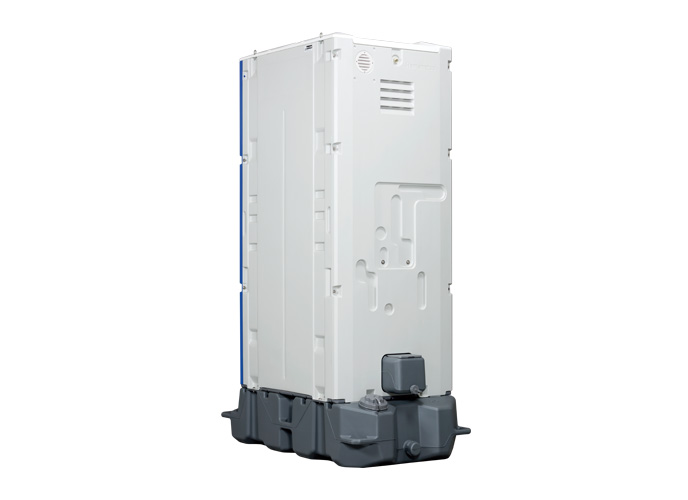

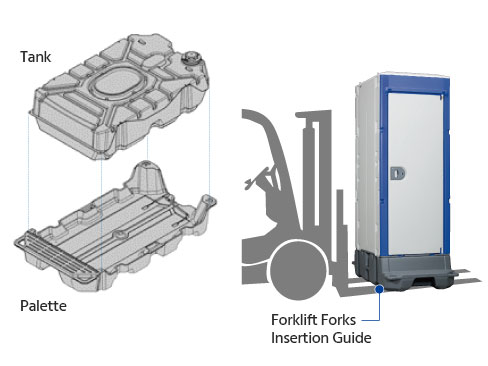

The optional double waste tank can be lifted by inserting the forks of a forklift, without concern for spilling sewage.

  • Easily insert forklift forks
  • The bottom of the tank has a slope towards the back, making it easy to drain
  • There are 6 handles, at the four corners and on the left and right sides
  • Sewage will not leak out even if the bottom breaks
  • The palette can be replaced individually

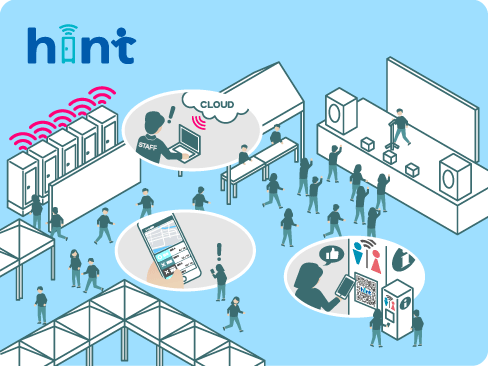

We have added a portable toilet management system, making portable toilets comfortable for both the managers and users.

This system collects data on the usage of the portable toilets and manages them on a website. We aim to provide toilet environments that are comfortable and safe for both the managers and users of portable toilets. Using IoT technology, “hint” propels us toward a new era of portable toilets.

See Portable Toilet Management System

Product List

Standard Specifications

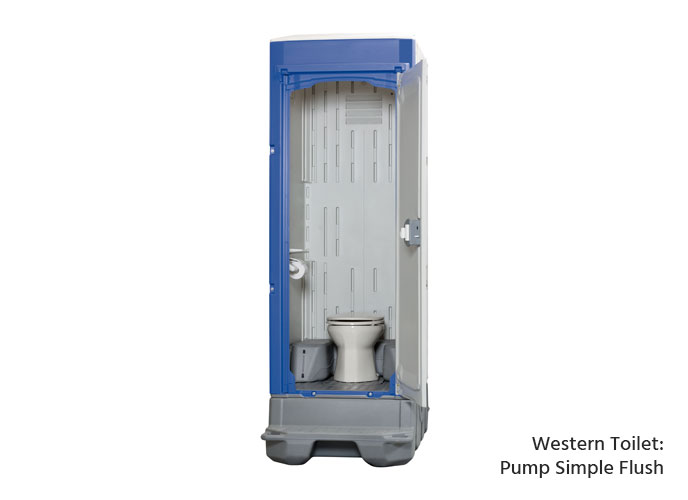

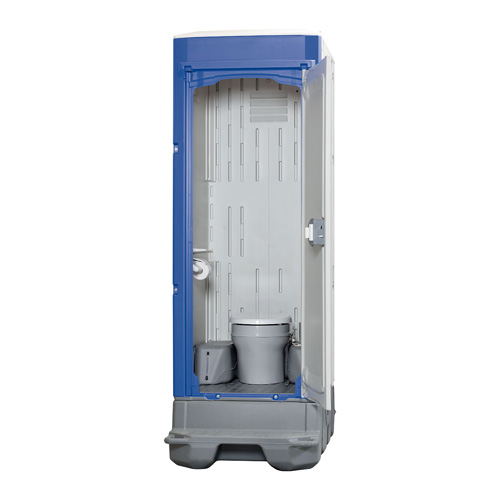

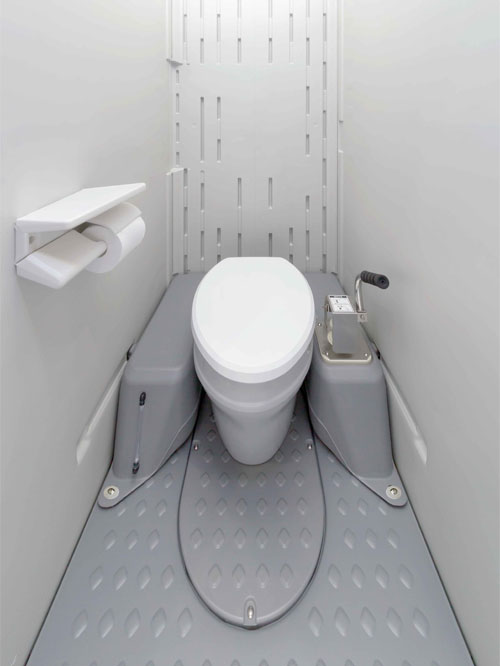

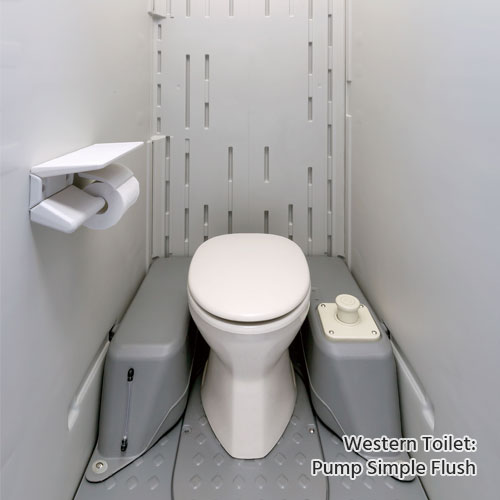

Pump Simple FlushTU-iXF4W-SA

  • Western Toilet
  • WeightApprox. 88kg
  • Waste Tank330L
  • Water Supply60L
Product No.: 1520200
Standard Price: ¥438,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Remarks: Plastic Western Toilet
Materials:

Specifications Drawing [PDF:355.4KB]

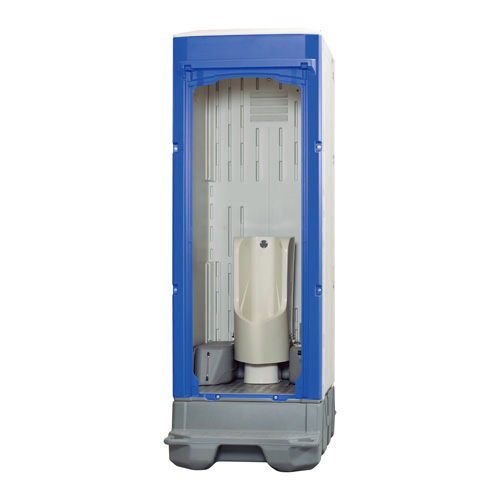

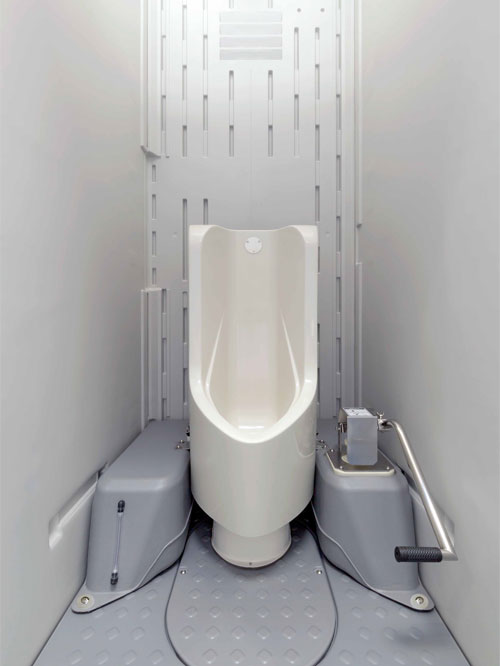

Pump Simple FlushTU-iXF4SS-SA

  • Urinal
  • WeightApprox. 88kg
  • Waste Tank330L
  • Water Supply60L
Product No.: 1520500
Standard Price: ¥414,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:333.4KB]

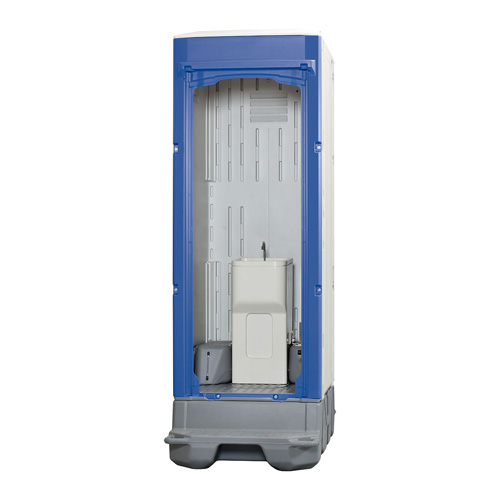

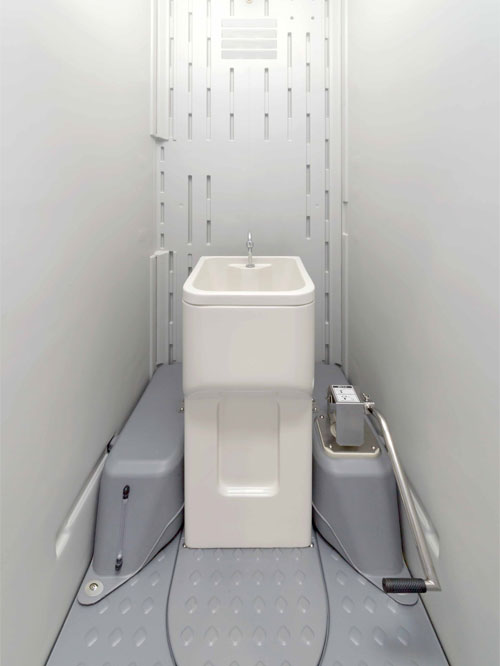

Pump Simple FlushTU-iXF4M-SA

  • Sink
  • WeightApprox. 88kg
  • Drainage330L
  • Water Supply60L
Product No.: 1520300
Standard Price: ¥403,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:343.1KB]

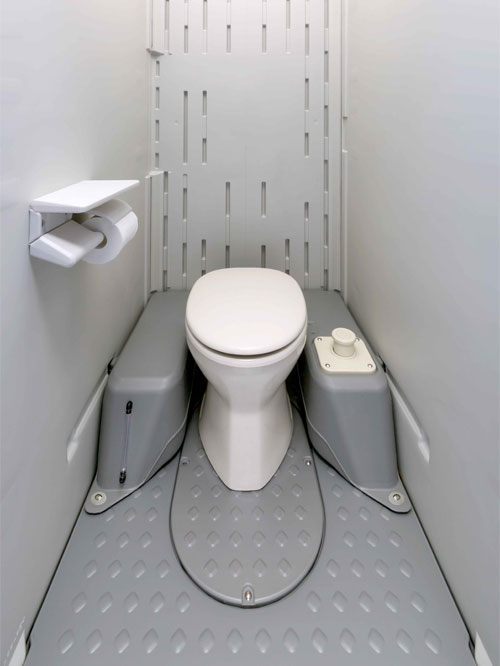

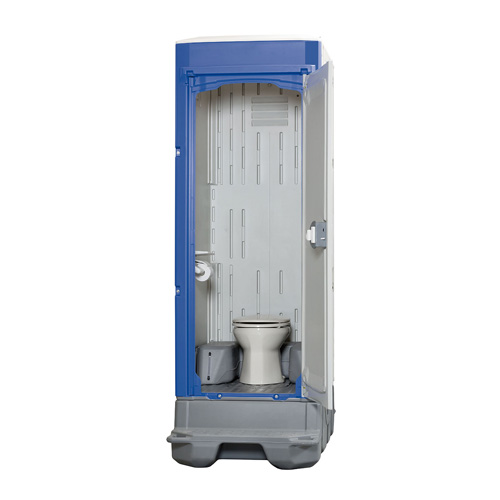

Pump Simple FlushTU-iXF4W

  • Western Toilet
  • WeightApprox. 93kg
  • Waste Tank330L
  • Water Supply60L
Product No.: 1520220
Standard Price: ¥417,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Remarks: Ceramic Western Toilet
Available with an optional pump auxiliary lever.
Materials:

Specifications Drawing [PDF:356.4KB]

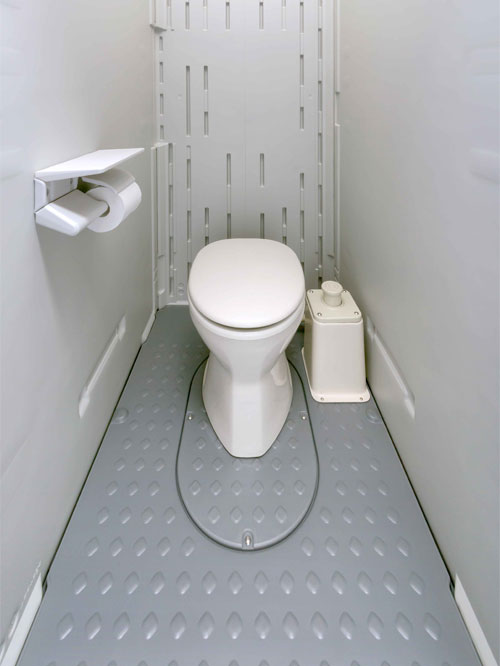

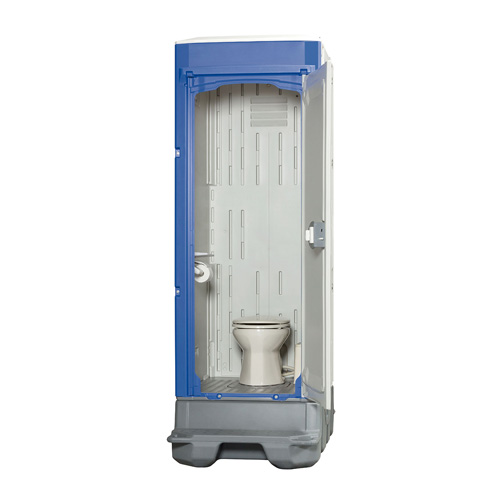

Pump Simple FlushTU-iXFUW

  • Western Toilet
  • WeightApprox. 90kg
  • Waste Tank330L
Product No.: 1520210
Standard Price: ¥383,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Remarks: Prepare a water supply plastic tank separately.
Available with an optional pump auxiliary lever.
Materials:

Specifications Drawing [PDF:343.4KB]

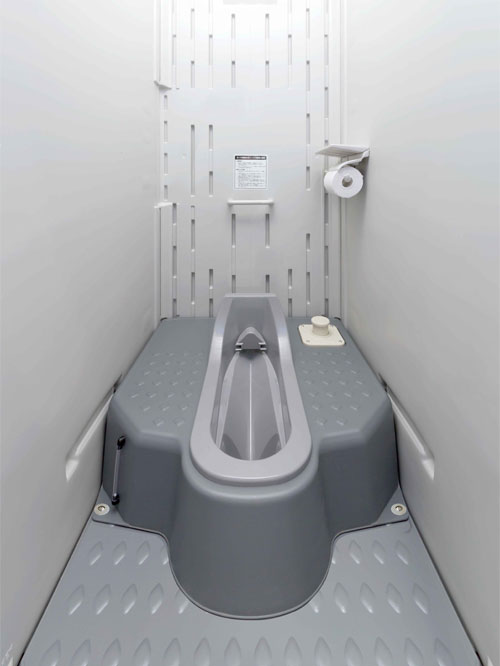

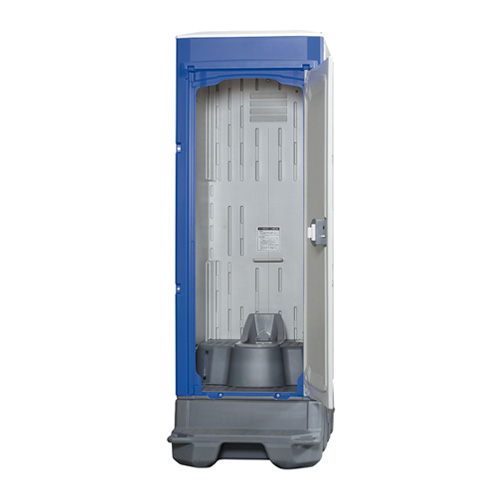

Pump Simple FlushTU-iXF4

  • Squat Toilet
  • WeightApprox. 88kg
  • Waste Tank330L
  • Water Supply75L
Product No.: 1520100
Standard Price: ¥352,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:355.1KB]

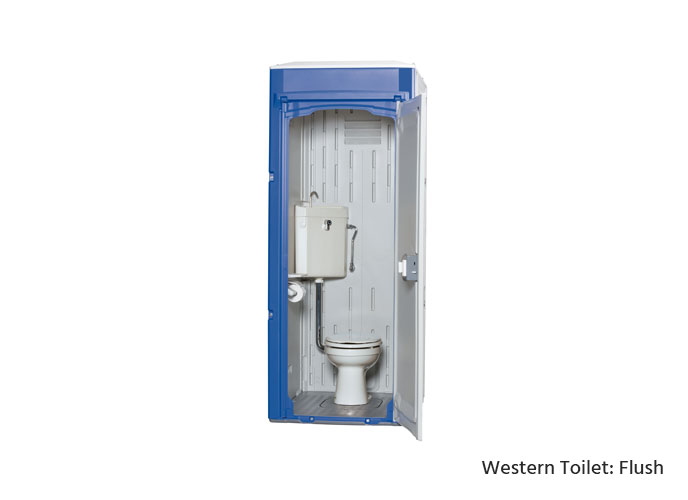

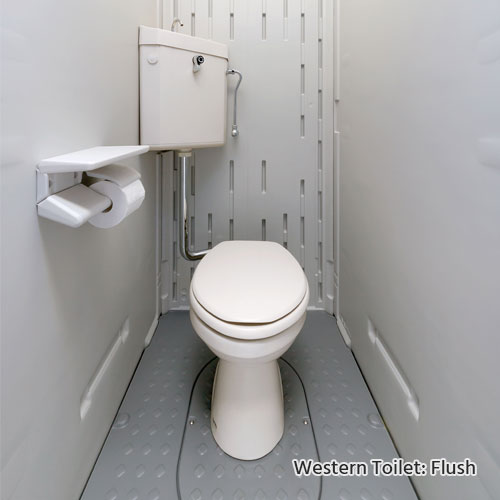

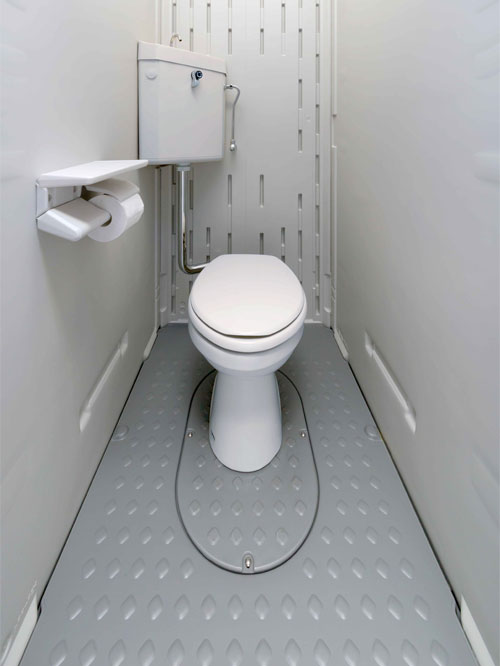

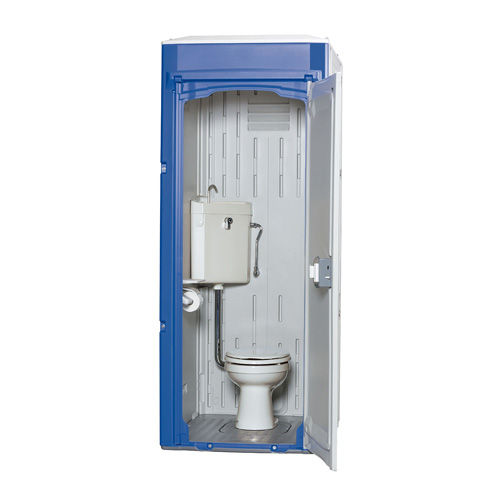

FlushTU-iXWH

  • Western Toilet
  • WeightApprox. 80kg
Product No.: 1521200
Standard Price: ¥350,000 (Tax, shipping not included)
Size: W845 × D1151 × H2110
Materials:

Specifications Drawing [PDF:313.6KB]

Reference Foundation Diagram [PDF:149.4KB]

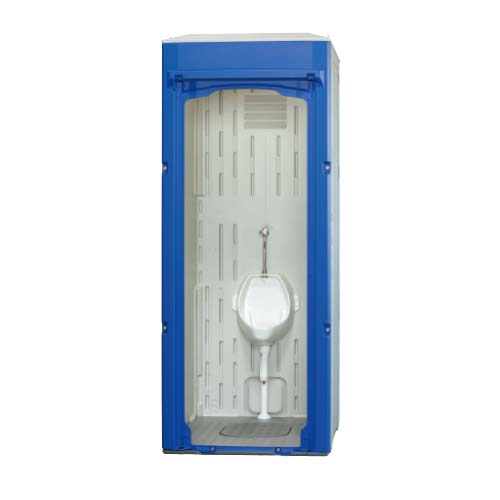

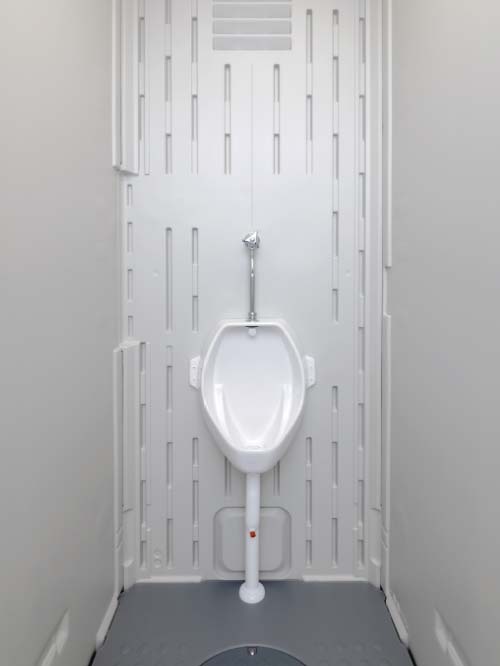

FlushTU-iXSH

  • Urinal
  • WeightApprox. 68kg
Product No.: 1521300
Standard Price: ¥236,000 (Tax, shipping not included)
Size: W845 × D1151 × H2110
Materials:

Specifications Drawing [PDF:275.3KB]

Reference Foundation Diagram [PDF:151.8KB]

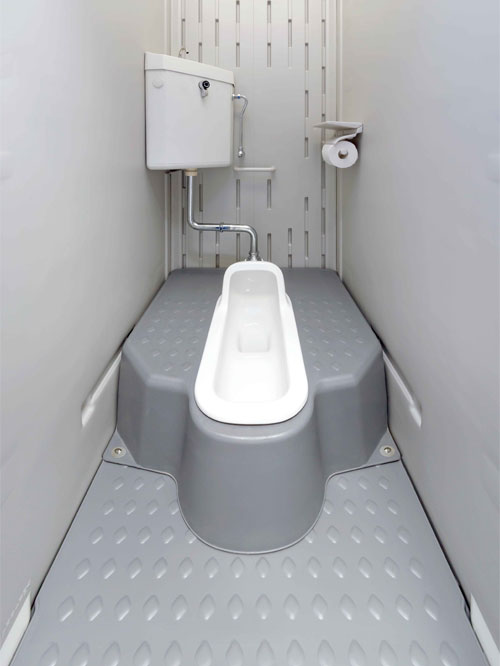

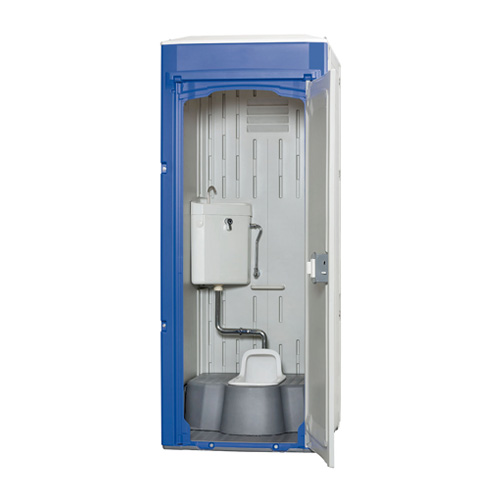

FlushTU-iXJH

  • Squat Toilet
  • WeightApprox. 90kg
Product No.: 1521100
Standard Price: ¥326,000 (Tax, shipping not included)
Size: W845 × D1151 × H2110
Materials:

Specifications Drawing [PDF:307KB]

Reference Foundation Diagram [PDF:153.1KB]

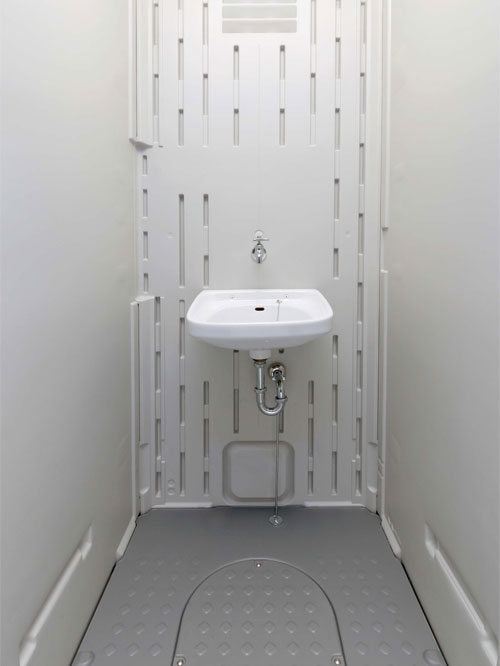

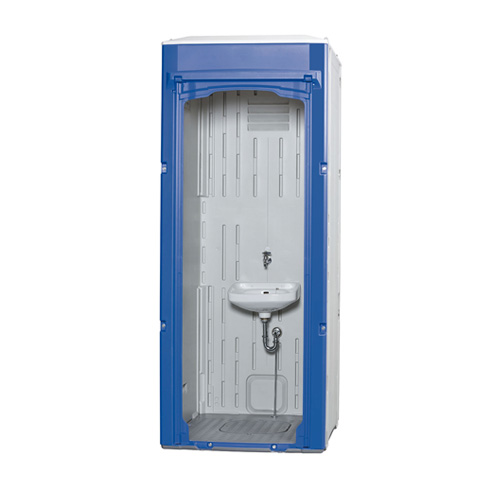

FlushTU-iXMH

  • Sink
  • WeightApprox. 68kg
Product No.: 1521400
Standard Price: ¥230,000 (Tax, shipping not included)
Size: W845 × D1151 × H2110
Materials:

Specifications Drawing [PDF:285.7KB]

Reference Foundation Diagram [PDF:138.3KB]

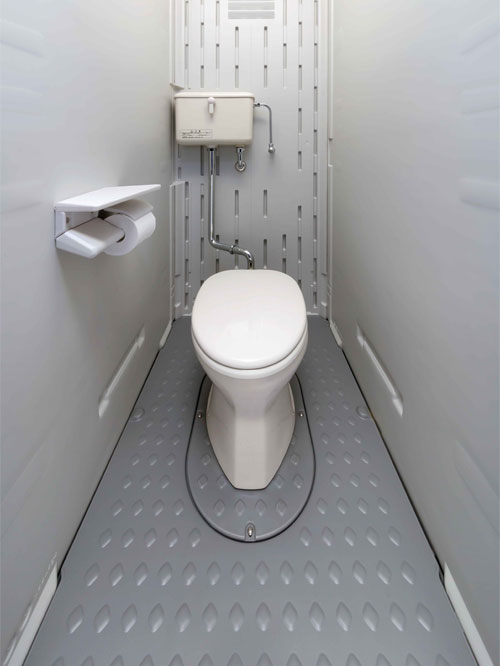

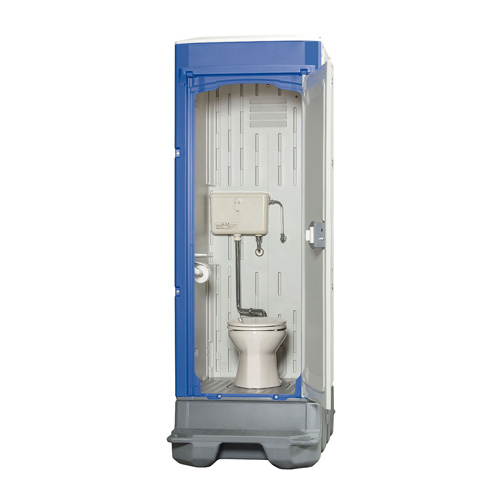

Simple FlushTU-iXFW

  • Western Toilet
  • WeightApprox. 103kg
  • Waste Tank330L
Product No.: 1523200
Standard Price: ¥487,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:354.8KB]

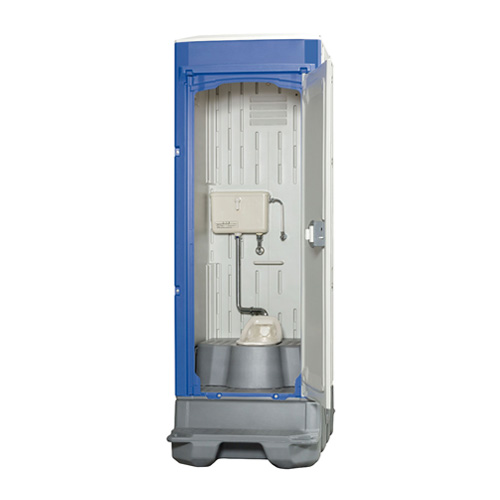

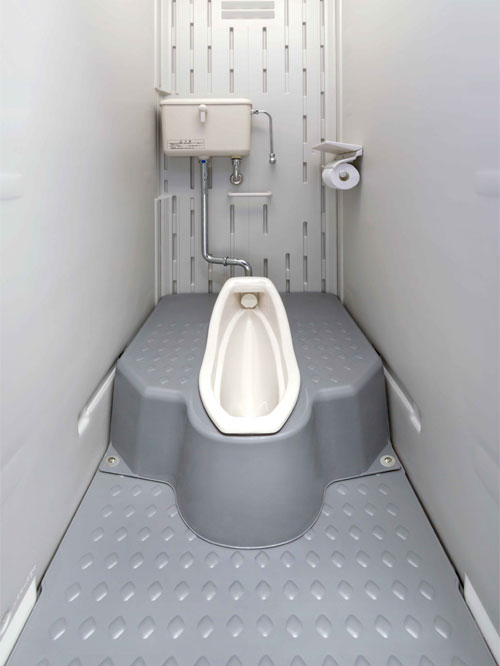

Simple FlushTU-iXF

  • Squat Toilet
  • WeightApprox. 110kg
  • Waste Tank330L
Product No.: 1523100
Standard Price: ¥473,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:350.2KB]

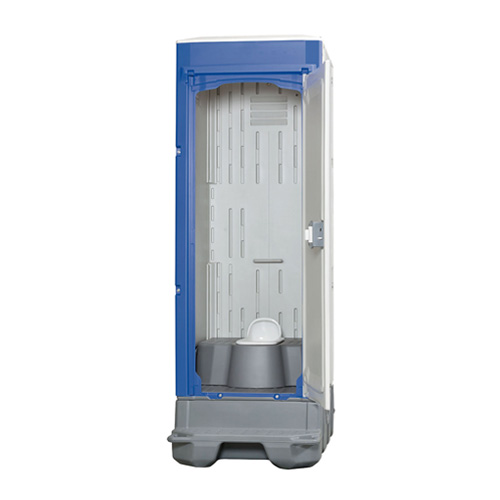

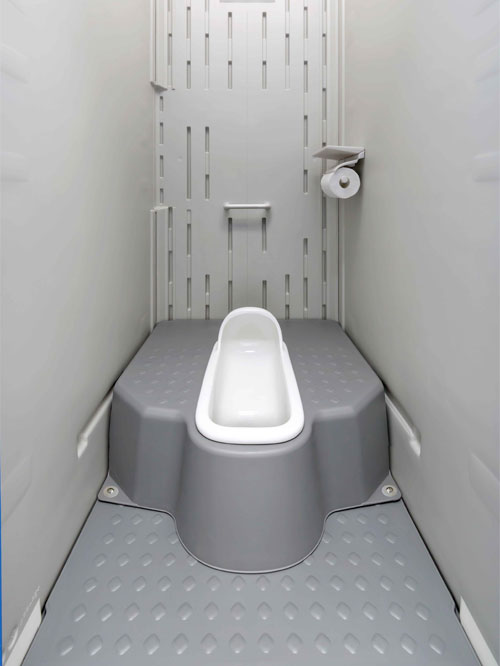

Non-FlushTU-iX

  • Squat Toilet
  • WeightApprox. 90kg
  • Waste Tank330L
Product No.: 1522100
Standard Price: ¥324,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:333.3KB]

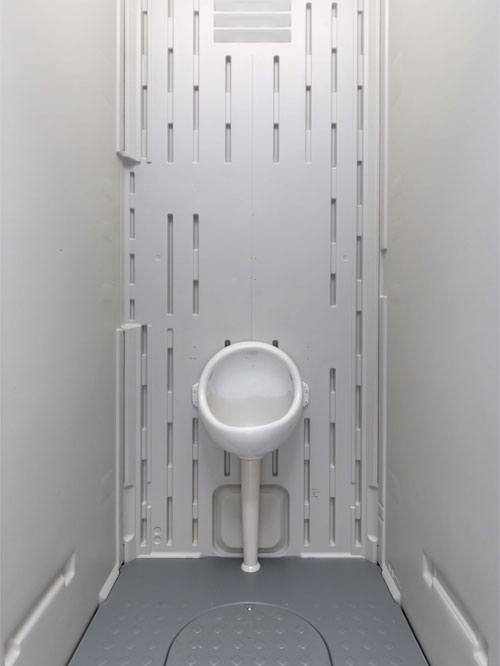

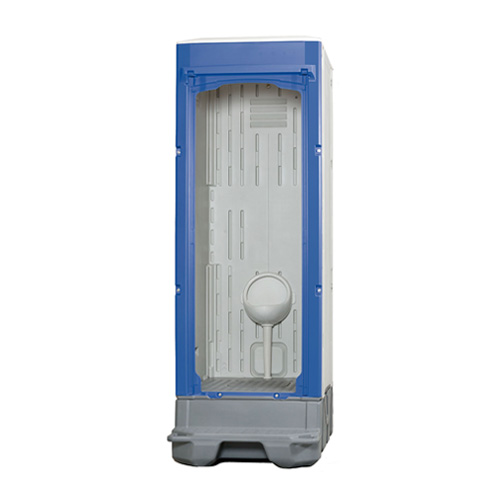

Non-FlushTU-iXS

  • Urinal
  • WeightApprox. 82kg
  • Waste Tank330L
Product No.: 1522300
Standard Price: ¥269,000 (Tax, shipping not included)
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:344.9KB]

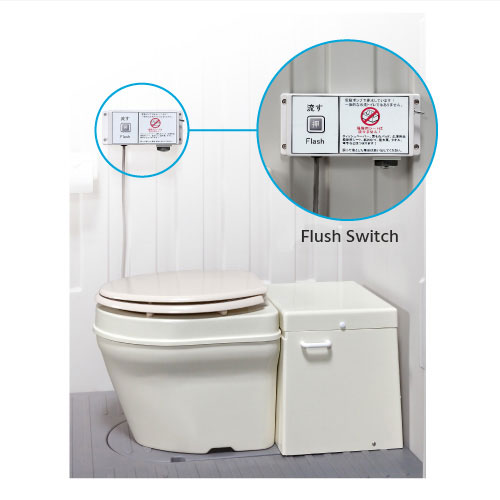

Pressure Pump FlushTU-iXAW

  • Western Toilet
  • WeightApprox. 70kg
Product No.: 1524100
Standard Price: Open Price
Size: W845 × D1145 × H2110
Remarks: Photograph is for illustrative purpose only.
Materials:

Specifications Drawing [PDF:241.2KB]

Comfortable Toilet Specifications

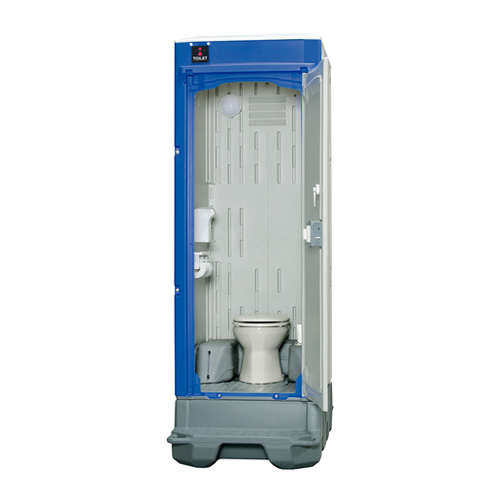

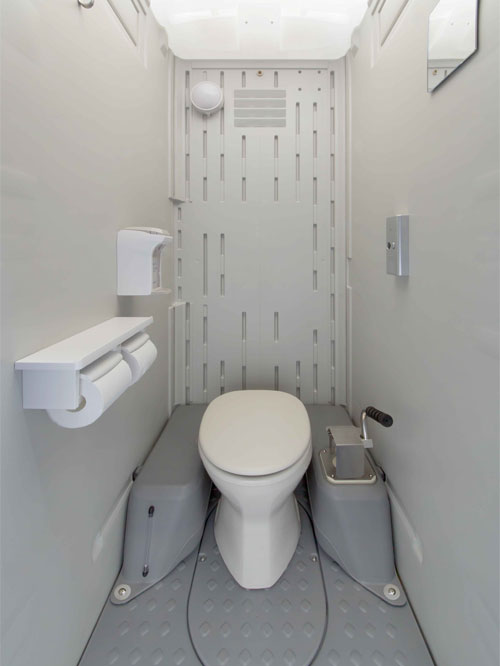

Pump Simple FlushTU-CTiXF4

  • Western Toilet
  • WeightApprox. 93kg
  • Waste Tank330L
  • Water Supply60L
Product No.: 1533100
Standard Price: Open Price
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:358KB]

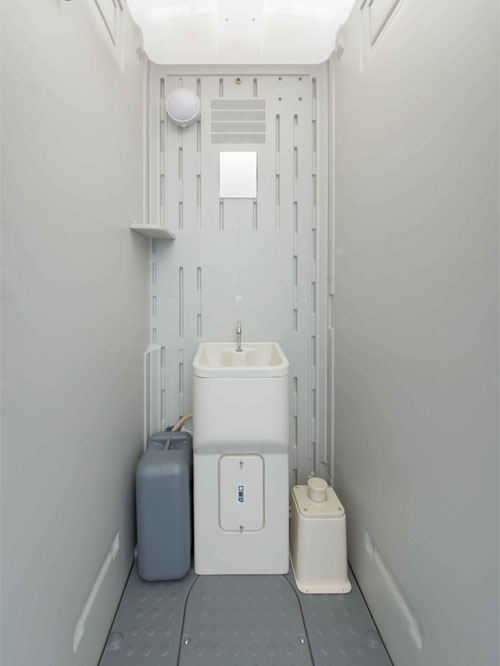

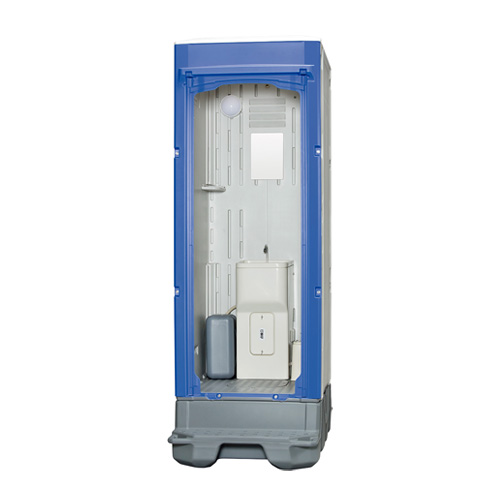

Pump Simple FlushTU-CTiXFUM

  • Sink
  • WeightApprox. 88kg
  • Drainage330L
  • Water Supply20L
Product No.: 1533150
Standard Price: Open Price
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:339.5KB]

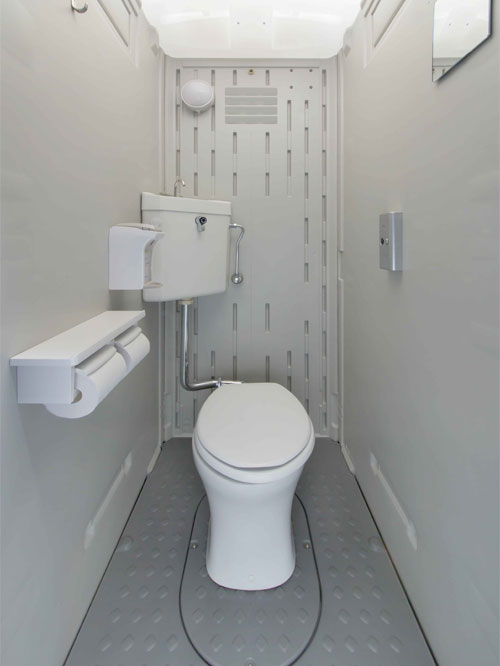

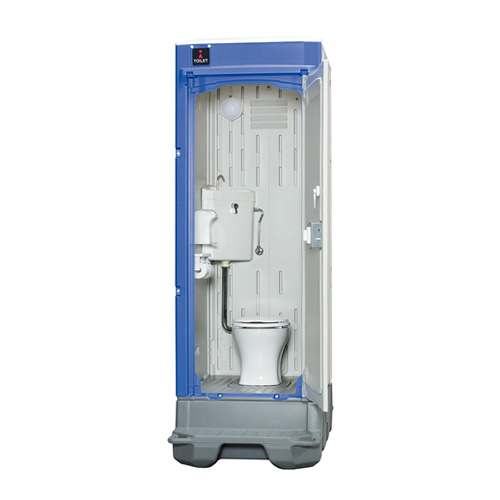

FlushTU-CTiX

  • Western Toilet
  • WeightApprox. 93kg
Product No.: 1533200
Standard Price: Open Price
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:384.2KB]

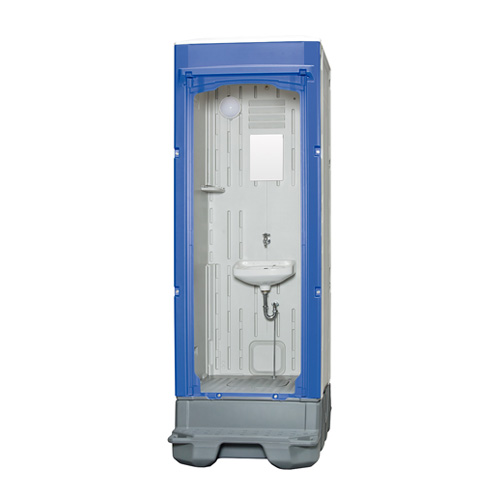

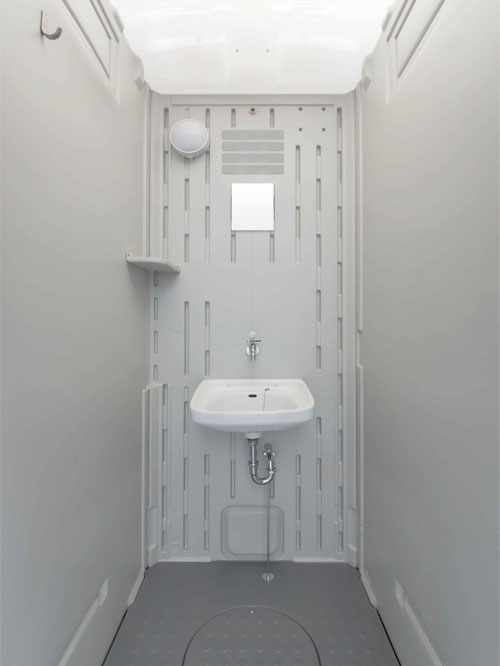

FlushTU-CTiXM

  • Sink
  • WeightApprox. 77kg
Product No.: 1533300
Standard Price: Open Price
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:354.4KB]

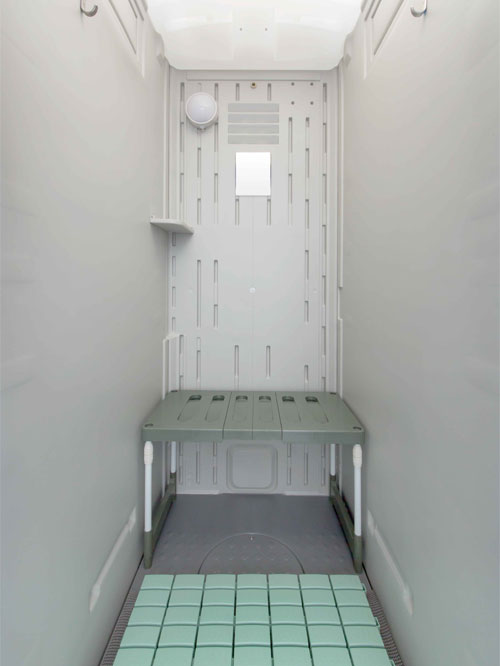

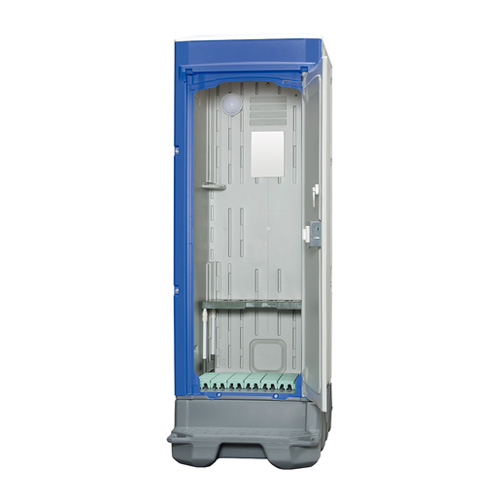

TU-CTiXKO

  • Changing Room
  • WeightApprox. 70kg
Product No.: 1533400
Standard Price: Open Price
Size: W845 × D1555 × H2470
Materials:

Specifications Drawing [PDF:283.8KB]

Options

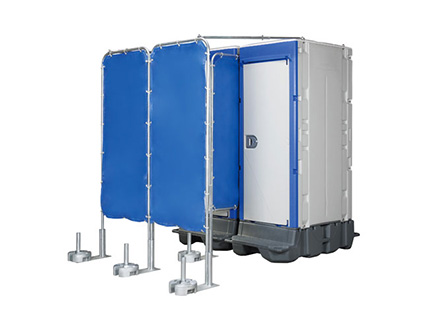

Free-standing Partition

See details

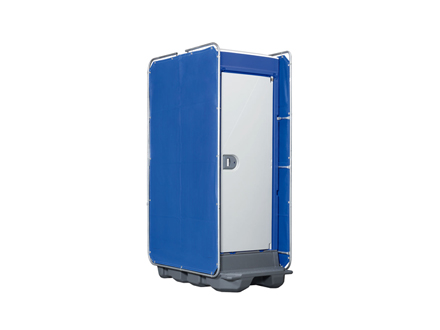

Toilet Blinds

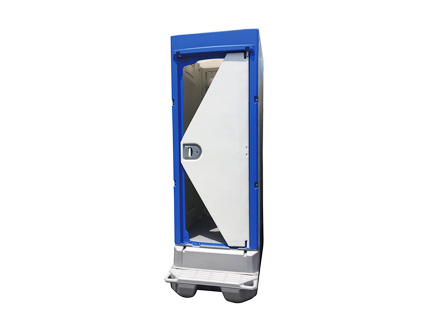

Half Door
Occupied Light

*Installed on site.

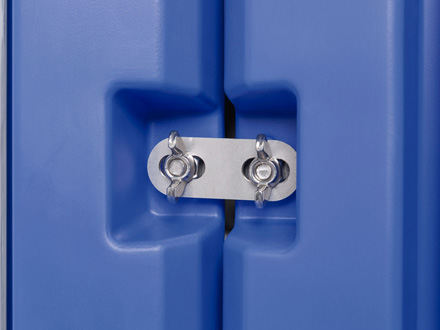

Connecting Brackets

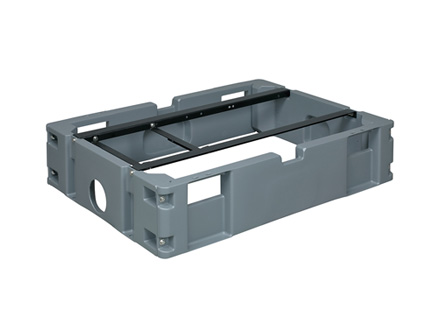

Flush Stand

Size: W845 × D1135 × H250
Material: HDPE

Specifications Drawing [PDF:128.7KB]

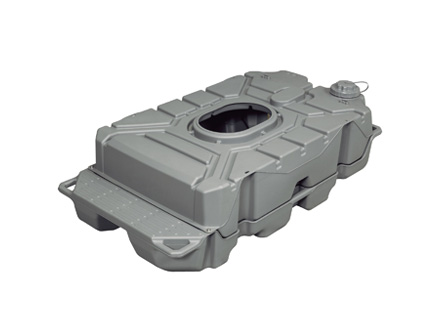

Double Waste Tank

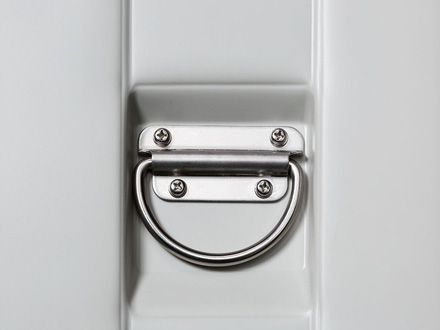

Side Hanger

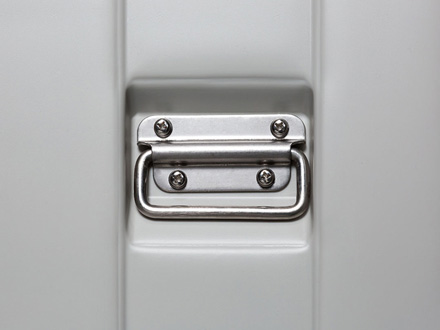

Side Handles
Smart Attach Western Toilet Kit
Smart Attach Western Toilet Kit
Smart Attach Urinal Kit
Smart Attach Urinal Kit
Smart Attach Sink Kit
Smart Attach Sink Kit

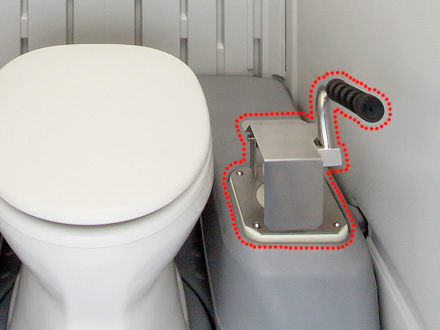

Pump Auxiliary Lever (Hand Lever)
Pump Auxiliary Lever (Hand Lever)

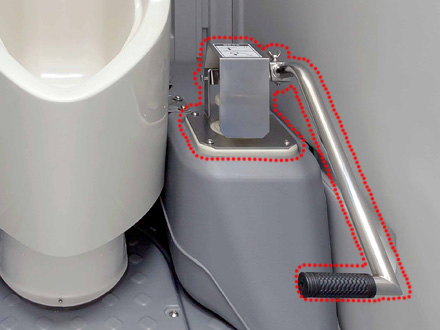

Pump Auxiliary Lever (Foot Lever)
Warm Water Cleansing Seat
Warm Water Cleansing Seat
暖房便座
Heated Seat

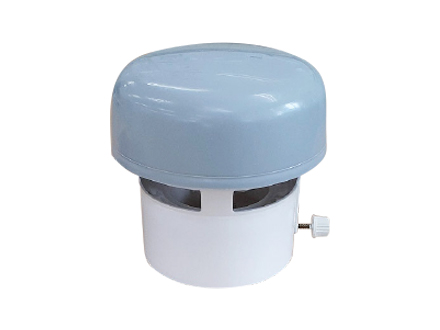

Electric Ventilator

Power Source: AC100V 50/60Hz
Power Consumption: 8/10W
Size: Compatible with 2 sizes of PVC pipes (Outer Diameter: 75 mm, Outer Diameter: 106 mm)

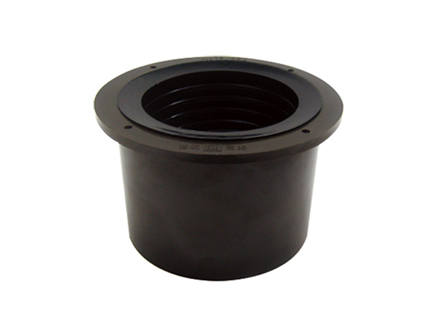

Squat Toilet Union

Materials: Main Unit - ABS plastic rubber
Joints - Soft PVC
Size: Compatible with 4 sizes of pipes(VU75 ・ 100, VP75 ・ 100)

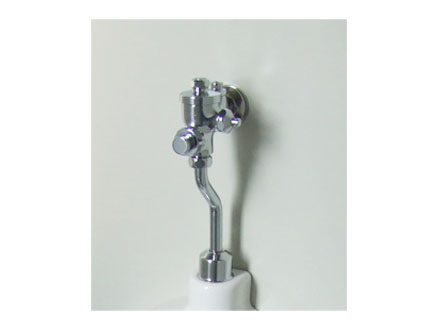

Flush Valve

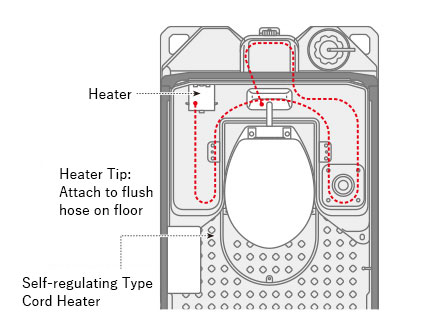

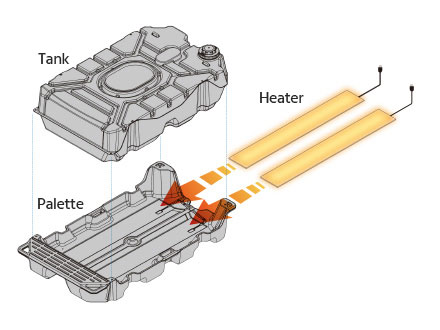

Double Waste Tank Anti-freezing Heater
Double Waste Tank Anti-freezing Heater
Water Tank Anti-freezing Heater
Water Tank Anti-freezing Heater

Heater:
Anti-freezing Temperature - -20℃
Heat Resistant Temperature - 65˚ C
Temperature Control - Self-regulating type
Heater Output - 0℃(209W), 20℃(131W), 40℃(60W)
Box:
Plastic Box: W100×L100×H200
Circuit Breaker - With switch 10A
Power Indicator - LED (Red light on the outside of the box turns on when current is flowing)
Power Source - AC100V 50/60Hz

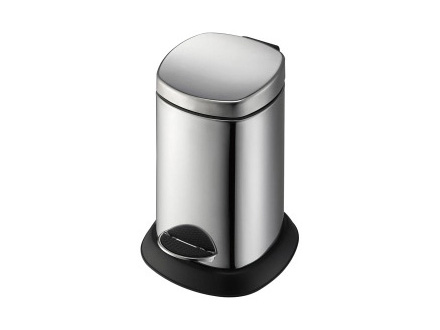

Sanitary Box
Sanitary Box

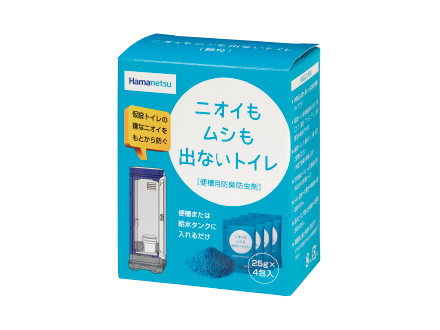

Deodorant / Insecticide
